1. Marine Certificates of Viega Press Connectors

2. Working Pressure

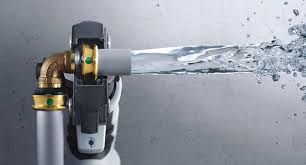

The Viega press connector system with the Smart Connect feature enables detection of unpressed connections, as they become visibly leaky when the system is filled. Viega guarantees detection of unpressed connections within the following pressure ranges:

Test medium: Water

• Minimum pressure: 0.1 MPa (100 kPa / 1 bar / 14.5 PSI)
• Maximum pressure: 0.65 MPa (650 kPa / 6.5 bar / 94.3 PSI)

Test medium: Air

• Minimum pressure: 22 hPa (2.2 kPa / 22 mbar / 0.3 PSI)
• Maximum pressure: 0.3 MPa (300 kPa / 3 bar / 43.5 PSI)

Operating conditions – potable water installations:

• Maximum operating pressure: 1.0 MPa (10 bar / 145 PSI)

Operating conditions – heating installations:

• Maximum operating pressure: 1.0 MPa (10 bar / 145 PSI)

3. Dimensions

Size range: d16 – 63mm

4. Piping Applications

a) For solid-walled plastic pipe:

• Potable water

b) For multi-layer pipe:

• Potable water
• Heating systems
• Rainwater
• Compressed air systems

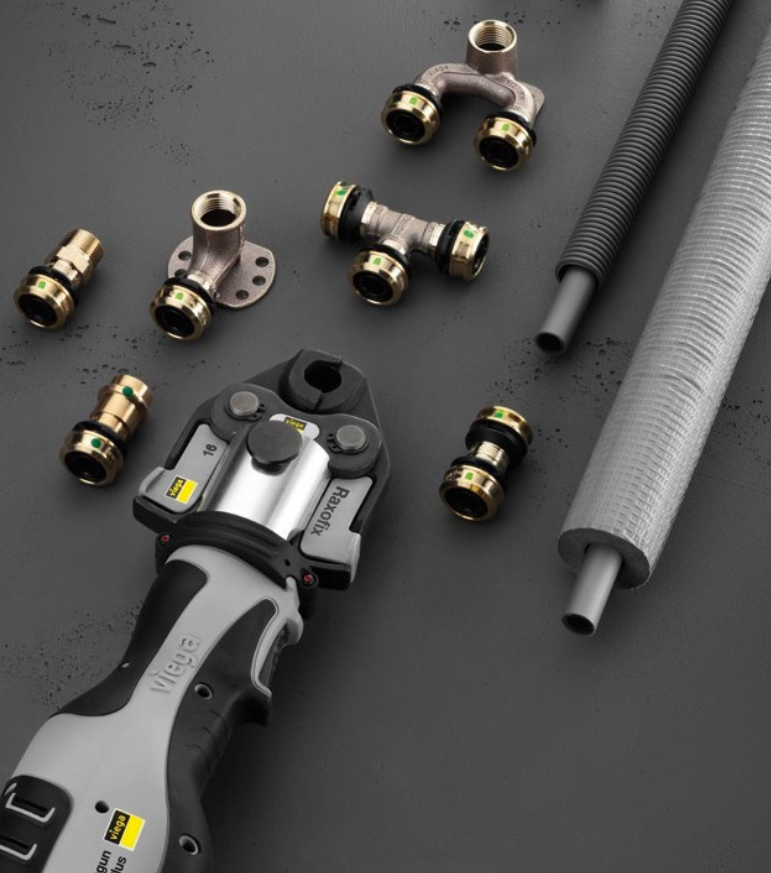

Note: The Raxofix press connector system is suitable for potable water installations according to DIN 1988-200 and EN 806-2, considering material selection in accordance with DIN EN 12502-1 and the evaluation basis for metallic materials in contact with potable water issued by UBA (Federal Environment Agency). For other applications or if in doubt about correct material selection, please contact Viega.

5. Standards

Potable water applications: DIN 1988-200 and EN 806-2

Material selection: DIN EN 12502-1

Evaluation basis: metallic materials in contact with potable water per UBA (Federal Environment Agency)

6. Operating Temperature Conditions

Potable water installations:

• Maximum operating temperature: 70°C (158°F)

Heating installations:

• Maximum operating temperature: 80°C (176°F)

Note: Mixed installations are permitted, regardless of the direction of flow.
