1. Marine Certificates of Viega Press Connectors

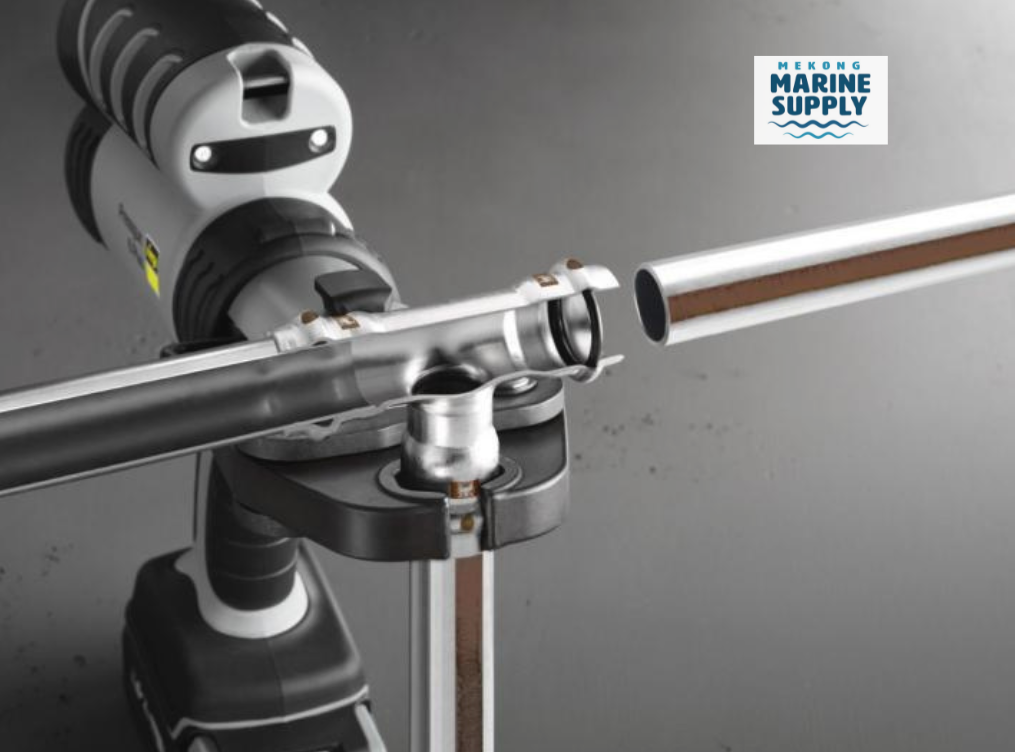

2. Press connector with SC‑Contur

The Viega press connector system featuring the SC-Contur function enables detection of unpressed connections, as they become visibly leaky when the system is filled/charged. Viega guarantees detection of unpressed connections within the following pressure ranges:

Test medium: Water

• Minimum pressure: 0.1 MPa (100 kPa / 1 bar / 14.5 PSI)
• Maximum pressure: 0.65 MPa (650 kPa / 6.5 bar / 94.3 PSI)

Test medium: Air

• Minimum pressure: 22 hPa (2.2 kPa / 22 mbar / 0.3 PSI)
• Maximum pressure: 0.3 MPa (300 kPa / 3 bar / 43.5 PSI)

In addition, the Sanpress Inox press connector system is designed for nominal pressure PN 16.

3. Dimensions

Size range: d15 – 108.0mm

4. Piping Applications

The Sanpress Inox press fitting system is suitable for the following piping systems/applications:

• Potable water
• Heating / radiator connections
• Rainwater
• Compressed air systems
• Agriculture
• Industrial applications
• Fire extinguishing systems (DIN 14462) wet
• Fire extinguishing systems (DIN 14462) dry and dry/wet (≤ DN65)
• Sprinkler systems (VdS CEA 4001) wet, wet/dry, dry

Note: System components must be protected against high chloride concentrations originating from the medium and/or external influences. For use outside the above applications/media, or if there is any doubt about the correct material selection, please contact Viega.

5. Standards

The press connector system (press connectors and pipes) complies with: DIN EN 10088, DIN EN 10312, DVGW Worksheet GW 541, and DVGW Worksheet W 534.

Pipe approval for material 1.4521 (d12 – 108.0) under approval no.: DW-7301BS0375

Pipe approval for material 1.4401 (d12 – 108.0) under approval no.: DV-7301BS0411

System approval for material 1.4401 (d15 – 108.0) under approval no.: DW-8501BL0551

System approval for material 1.4521 (d15 – 108.0) under approval no.: DW-8501BS0376

For heating system applications, comply with VDI 2035 and DIN EN 12828.
For potable water applications: DIN 1988-200 and EN 806-2, considering material selection per DIN EN 12502-1 and the evaluation basis for metallic materials in contact with potable water issued by UBA (Germany).

6. Operating Conditions

The Sanpress Inox press connector system can be operated under the following parameters:

Potable water systems (DIN 1988-200 / DIN EN 806-2)

• Maximum operating temperature: 80°C
• Permitted maximum: 95°C for 60 minutes

Heating systems (DIN EN 12828)

• Maximum operating temperature: 105°C
